Galloway 1/3rd & 1/6th Scale
Water-Cooled
Hit & Miss Engine
Casting Kits
Galloway 1/6th Scale model of a 5hp
Engine
The Castings Kit
Price:£345.00p

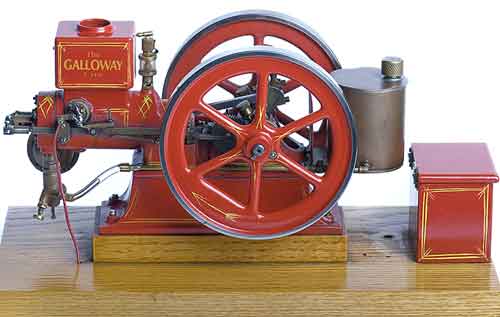

A finished engine.
(Please note:
Wooden base not included.)
The Kit contains:
Two Cast Iron castings; Two Flywheels; Cylinder Sleeve;
Nine Bronze castings; Connecting Rod bearing; Carburettor; Igniter; Push Rod
brackets; Governor Bracket; Rocker Arm bracket; Top & bottom Mufflers; Six
Aluminium castings; Base; Sub-Base; Water Hopper; Cylinder Head; Bearing
Caps; Two Decals; Photo Engraved Nameplate; Set of Gears - Bored to size; A
Set of nine detailed Blueprints.
A lathe and milling machine are needed to
finish the castings and to fabricate the additional parts required.
A 1/6th Scale Galloway has: 5" inch Flywheels;
⅞" inch Bore & 1-11/16"
inch stroke.
The kit comprises of castings that
must be machined. Measurements are given for all parts required to complete
the engine.
----------oooooOooooo----------
Galloway 1/3rd Scale model of a 5hp
Engine
The Castings Kit
Price: £625.00p
A finished engine.
(Please note:
Wooden base not included.)
Galloway 1/3rd Scale Castings Kit
Note: This Kit comprises of
castings that must be machined.
The Kit contains:
Eight Cast Iron castings; Two Flywheels; Bearing Caps;
Cylinder Sleeve, Head & Water Hopper; Nine Bronze castings; Connecting Rod
Block; Igniter; Governor Bracket; Carburettor; Rocker Arm Bracket; Top &
Bottom Mufflers: One Aluminium casting; Piston; Two Decals; Photo engraved
Nameplate; Set of seven detailed Blueprints; A set of Gears (Exact width,
bore and one shallow Keyway. Cast Iron Sub-base.
The kit comprises of
castings that must be machined. Measurements are given for all parts
required to complete the engine.
A 1/3rd Scale Galloway model has: 10.200"
inch Flywheels; 1.750" diameter Bore & a 3.375" inch Stroke.
