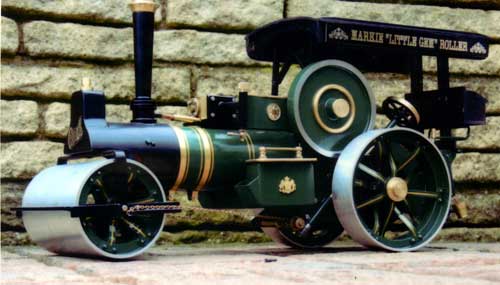

NEW! Little Gem Series - ¾" scale |
||||
 |
||||
| Specifications | ||||
|
Scale: |
¾" to 1 foot |
|||
|
Height: |
9½” (241mm) |
|||
| Length: | 17” (432mm) - Showmans 18" (457mm) | |||
| Width: | 7" (178mm) | |||
| Weight: | 14lbs | |||
| Rear Wheels: | 5” diameter | |||
| Front Wheels: | 3” diameter (76mm) | |||
| Boiler Diameter: | 1¾" (44mm) | |||
| Bolier Length: | 7½" (190mm) | |||
| Running pressure: | 20 to 40 psi | |||
|
Fully built or kit to assemble. Price: £1035.00.00p |
||||
|
LITTLE GEM Series 2 Specification for all engines |
||||
| • Spirit Fired | ||||
| • Cab: Steel and Dural Construction | ||||
| • Smoke Box: Fabrication with Brass Chimney Top | ||||
| • Door: Hinged with Markie name plate | ||||
| • Front Axle and Fork: Steel | ||||
| • Boiler: Copper with 5 Water Tubes and heavy gauge Back Plate all silver soldered with certificate. | ||||
| • Cylinder: Machined from block | ||||
| • Main Tube: Steel tube enclosing boiler | ||||
| • Wheels: Hand built and riveted. Canopy and supports. Boards and rubber tyres. | ||||
| • Cylinder: Double Acting 1/2" (12.5mm) diameter | ||||
| • Crankshaft: Steel 3/4" (19mm) stroke Piston and Rod: Stainless Steel | ||||
| • Slide Valve | ||||
| • Forward/Reverse Slip Eccentric | ||||
| • Lever Operated | ||||
| • Displacement Lubricator | ||||
| • Copper Tubing throughout | ||||
| • Full Building Instructions fit Drawings | ||||
| Complete with Pressure Gauge, Water Level Sight Glass, Steam Cock and Drain Screw. Ring Burner with drip feed Tender Tank (spirit fired). Steering by Worm and Wheel Chain. Lever Brake System. Single Speed Lever Control. Gear Driven. | ||||
|
