The Stirling 5 Stirling Engine. |
|||||
|
|
|||||
| This powerful Stirling engine produced in
horizontal construction format from brass, stainless steel, & glass. Speed is regulated to between 90-500 rpm using an adjustable brake. Driven parts can be moved via the pulley. It is possible to transform the “Stirling 5” into both a traction engine (running on the ground) and an No 1, 45 mm gauge locomotive in only a few simple steps. A music box may be added to produce music. Length: 210 mm.
Width: 70 mm. Height: 120 mm. Weight 460 g. Working piston Ø: 18 mm.
Displacement piston Ø: 27 mm. |
|||||
|
See the Stirling Engine 5 in action |
|||||
| Stirling 5 Stirling Engine Finished Model Price: £ 284.76p |
Stirling 5 Stirling Engine Kit Form Price: £ 264.50p |
||||
|
|
|||||

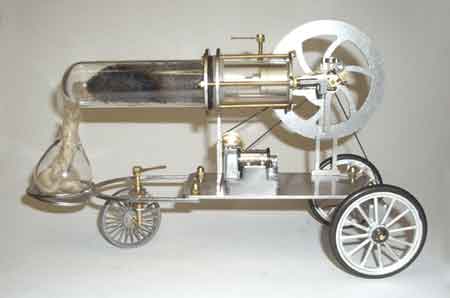

| Traction Engine Chassis for the Stirling No 5. | |||||
|
|
|||||
| The individual components to enable the
“Stirling No. 5” engine into a traction engine are screwed to the baseplate
and instructions for construction are shown pictorially. The “Stirling No. 5” runs on the ground, either with or without music from the box. Length: 250 mm. Width: 70 mm. Height: 150 mm. Weight: 770 g. Materials: Stainless steel, cast tin & brass. |
|||||
|
See the Traction Engine in action |
|||||
|
Traction Engine Chassis for the Stirling Engine
No 5. 010614 |
|||||
|
Locomotive Chassis for the Stirling No 5. |
|||||
|
|
|||||
| The components for converting the Stirling No. 5
into an Gauge 1, (45 mm) locomotive are simply screwed onto the Stirling
No. 5’ s baseplate. The construction manual shows all the required details..
The locomotive runs both with and without music box. Length: 240 mm. Width: 70 mm. Height: 145 mm. Weight: 750 g. Materials: Stainless steel, pressure die castings & steel. |
|||||
|
See the Locomotive in action |
|||||
|
Locomotive Chassis for the Stirling Engine No 5.
010615 |
|||||
|
A Musical Box that can driven by the Stirling 5. |
|||||
|
|
|||||
| Here's an original idea - Stirling engine driven Musical Boxes! We offer the ,following well-known tunes: "Happy Birthday," "La vie en rose" & "Für Elise." | |||||
| "Happy Birthday" Musical Box for the Stirling Engine No 5. Price: £ 13.79p |
"La vie en rose" Musical Box for the Stirling Engine No 5 Price: £ 13.79p |
"Fur Elise" Musical Box for the Stirling Engine No 5 Price: £ 13.79p |
|||
|
